Uv Lights Machine Vision Led Lighting 365/385/405nm Illumination

Brand Name : OPT

Model Number : OPT-LI6022-UV

Place of Origin : China

MOQ : 1piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Product name : UV Lights Machine Vision LED Lighting

Color : UV

Output : 1.4W

Channels : 1

Housing Size（Length） : 60

Emitting Size（Diameter） : 48

Wavelength : 385nm

Recommended Controller : OPT-DPA2024E

Contact Now

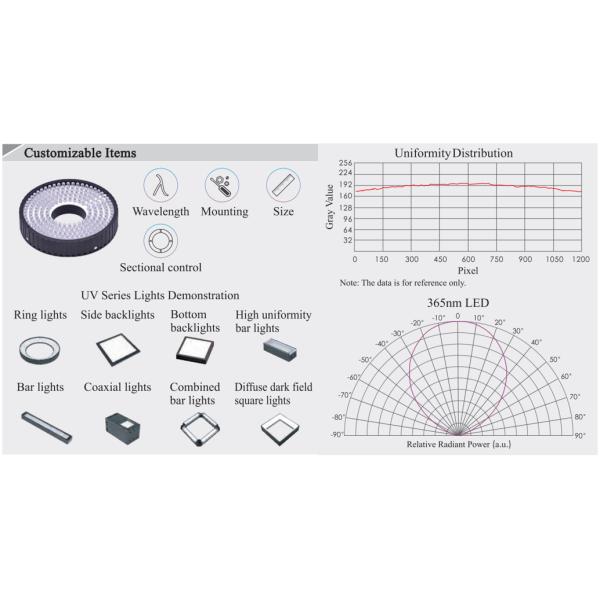

UV Lights Machine Vision LED Lighting 365/385/405nm Illumination Customizable Shapes and Illumination Angles

Product Features
◆ Equipped with advanced UV LEDs for stable performance
◆ 365/385/405nm illumination

◆ Customizable shapes and illumination angles

Application Cases

◆ Banknote/ticket inspection
◆ Fluorescent material inspection
◆ Recognition of fluorescent characters/barcodes and 2D codes reading
◆ Minor glass defect detection
◆ Photochemical effect (for sampling only)
◆ Minor housing scratches and damage detection
◆ UV glue inspection

Specifications

Model	OPT-LI6022-UV
Color	UV
Output	1.4W
Channels	1
Housing Size(Length)	60
Emitting Size(Diameter)	48
Recommended Controller	OPT-DPA2024E
Wavelength	385nm

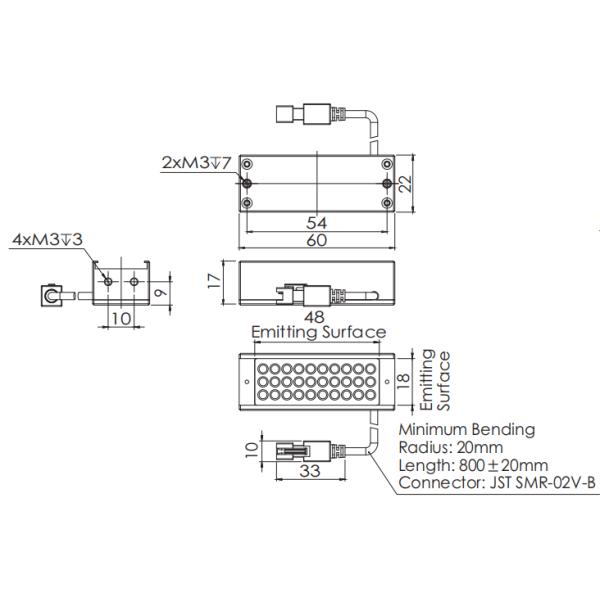

Dimensions (mm)

OPT-LI6022-UV

Applications: Glue detection on PCB
